Line Boring Machine Portable
Versatile Application: Ideal for repairing and re-machining worn holes in excavators, cranes, loaders, and presses. Commonly used for hole finishing post-welding, bushing installation after reaming, and restoring alignment in structural joints.
Easy Installation & Portability: Combines bolted and welded clamping mechanisms for rapid mounting and disassembly. Lightweight construction facilitates transport and is optimized for mobile machining needs.
High-Precision Cutting System: The boring shaft and linear guides are built from heat-treated 45# steel, finished with grinding and hard chrome for excellent durability and precise cutting accuracy.
Stepless Speed Control: Both spindle and feed systems offer infinitely variable speed adjustment, ensuring precise machining for a wide range of bore sizes and materials.
Strong Customization Capability: Adaptable boring bar lengths and operating strokes are available to suit job-specific demands, including large, offset, or clustered hole structures on-site.
Overview
The Line Boring Machine Portable serves as a professional solution for after-weld hole corrections on heavy machinery. It's suitable for rotary joints, shaft sleeves, and articulation point re-machining.
Designed with a bolt-weld clamping method for quick field deployment, it enables precision machining of single and multiple bores via continuous cutting.

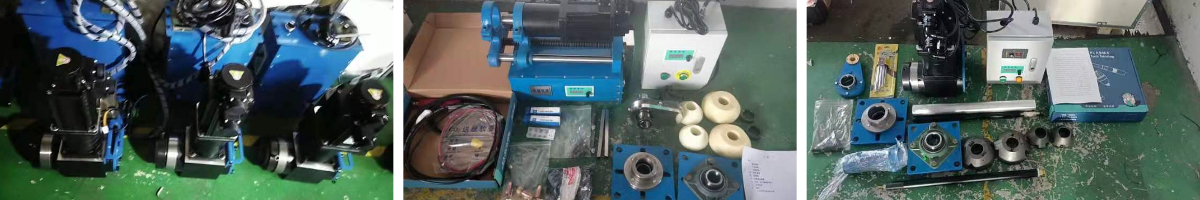

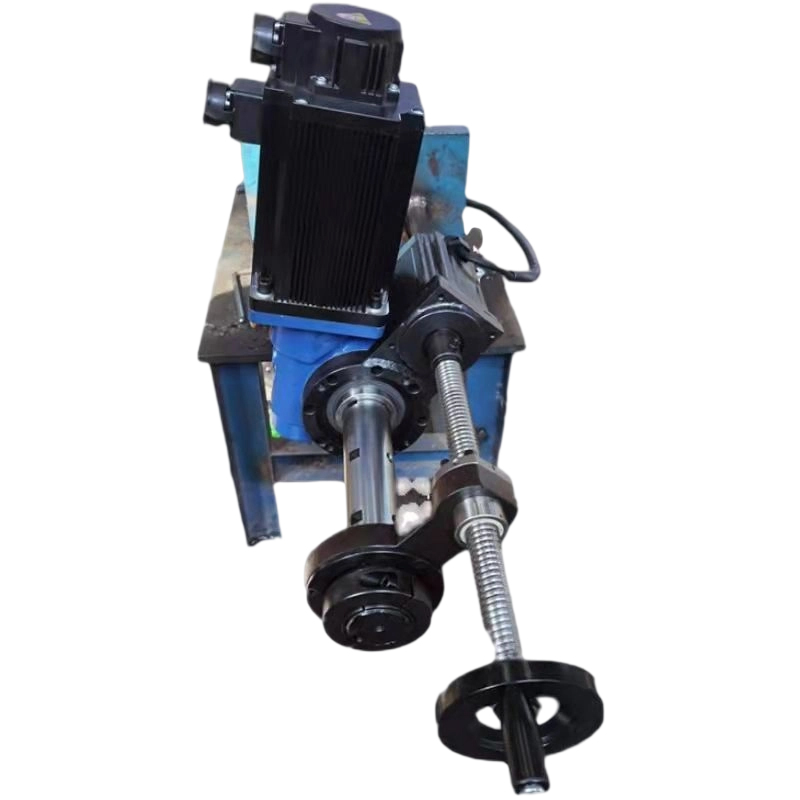

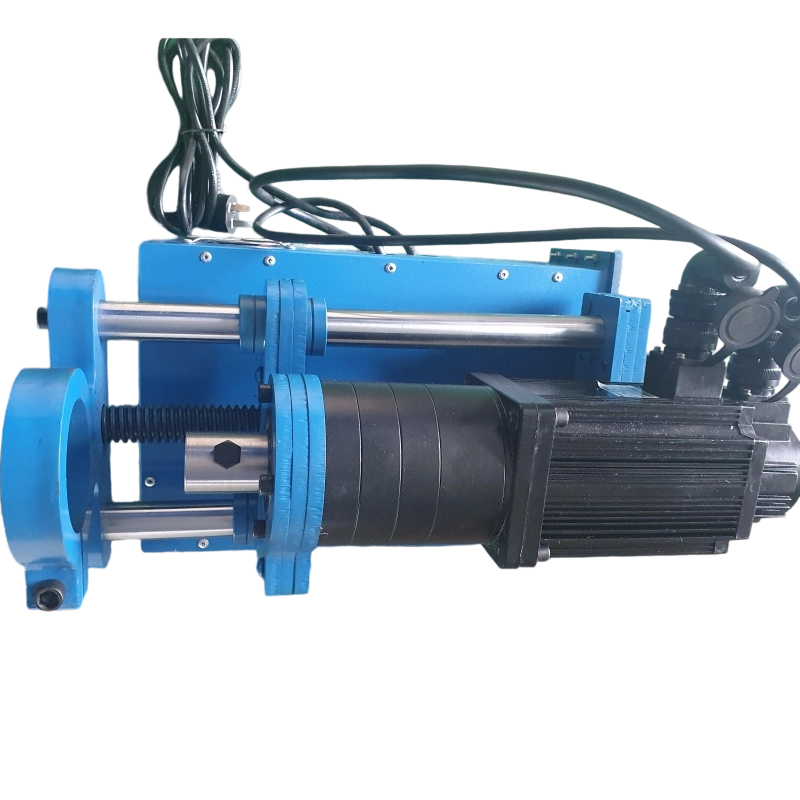

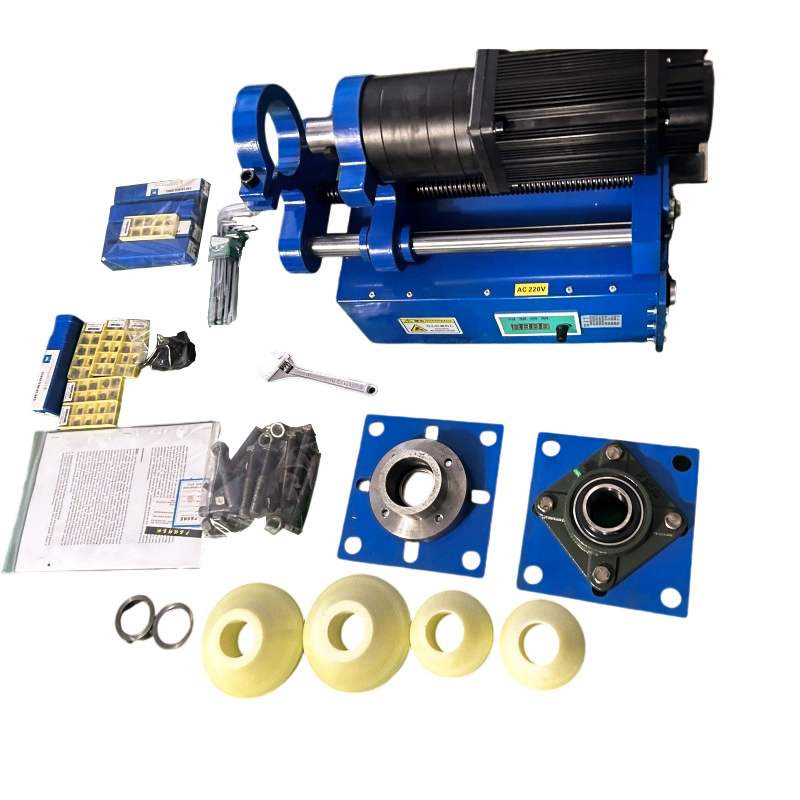

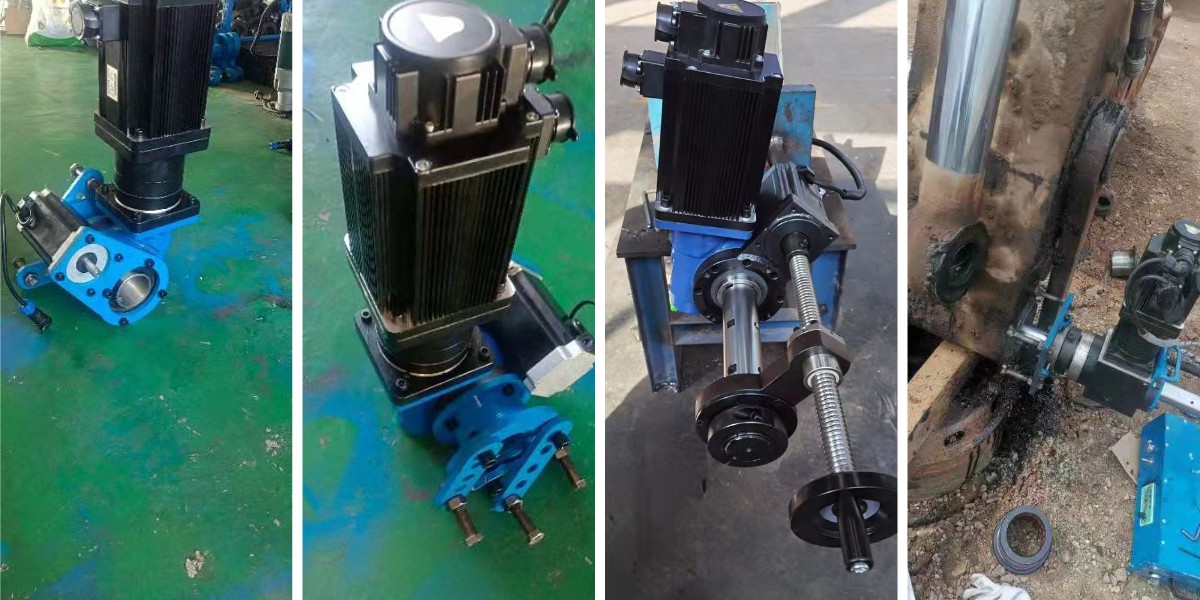

Machine Photos
Technical Specifications
Item | Specification |
Main Motor Power | 1.8 kW, stepless speed control (0–180 RPM) |
Feed Box | Stepless speed regulation, automatic feed |
Feed Motor | 220V, 120W, stepless speed control |
Boring Diameter Range | Ø80 mm – Ø180 mm |
Boring Bar Specification | 40 mm × 1500 mm (customizable upon request) |
Boring Bar Material | 45# steel |
Boring Bar Processing | Tempered, turned, quenched, ground, surface hard chrome plated |
Feed Guide Rail | Double cylindrical guide rails (45# steel, tempered, turned, quenched, ground, hard chrome plated) |
Minimum Cutting Feed | 0.10 mm/rev |
Maximum Cutting Depth | 2 mm (per side) |
Working Stroke | 300 mm (customizable upon request) |
Weight | Approx. 60 kg |

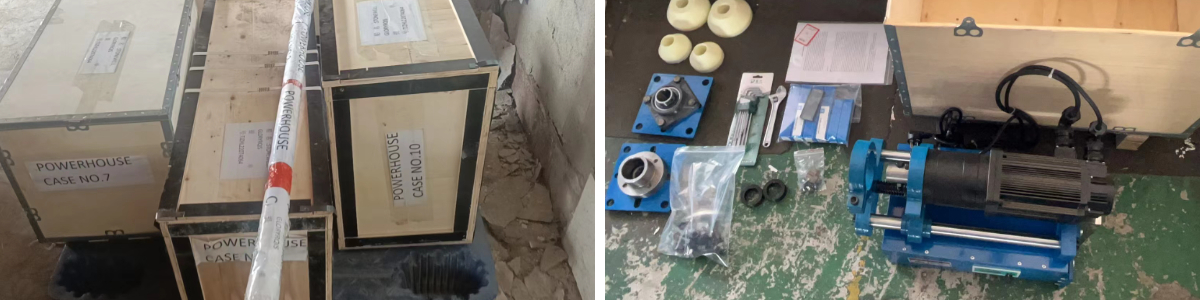

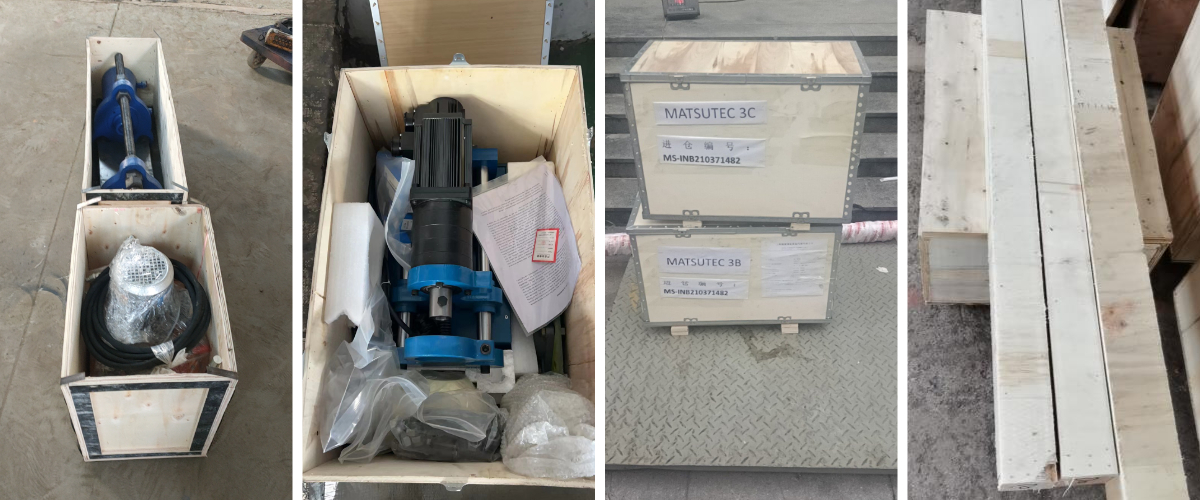

Packing & Shipping Process
