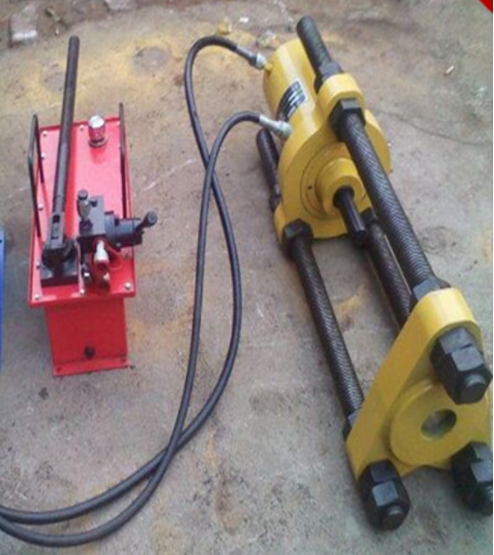

Track pin remover
Efficient & Convenient: Replaces gas cutting/hammering with hydraulic-powered operation for fast, smooth pin removal—boosting efficiency while saving time and labor costs.
Track Protection: Prevents heat damage from gas cutting and mechanical deformation from hammering, extending track lifespan and cutting maintenance costs.
Wide Compatibility: Works on crawler excavators, loaders, and other track equipment. Suitable for factories, job sites, and fieldwork—ideal for pin/sleeve disassembly.
Multi-Functional: With attachments, it handles lifting, bending, shearing, riveting, and more—versatile and high-value.
Product Introduction

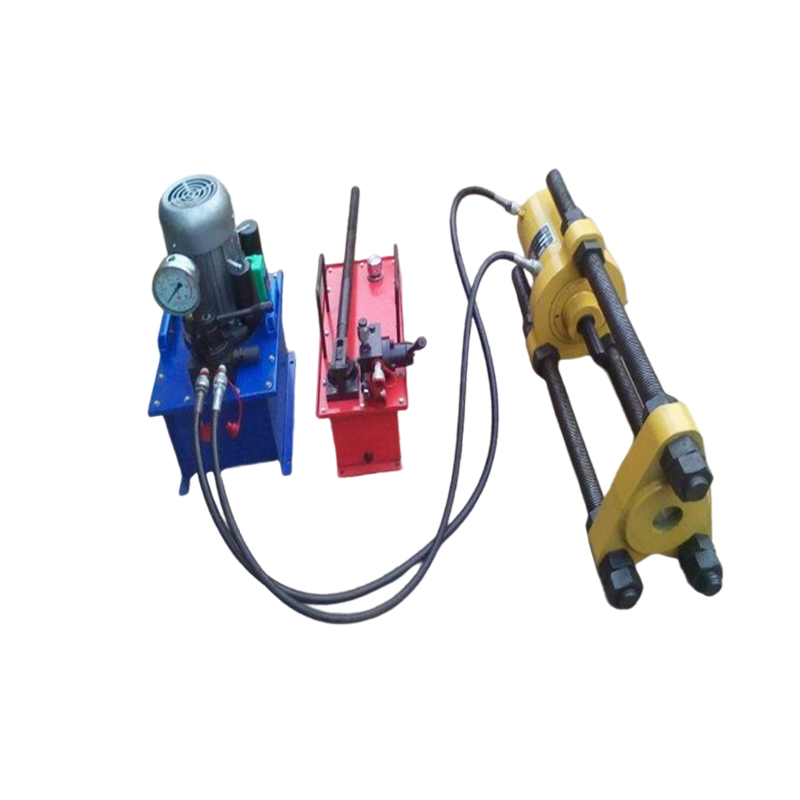

Track pin remover is a special equipment used to remove track pins from crawler machinery (such as excavators, bulldozers, tanks, etc.). Track pins are key components that connect track plates. After long-term use, they may need to be replaced due to wear and damage. The pin remover can efficiently and safely complete the removal of pins, avoiding the labor and risk of manual operation. The portable chain disassembler adopts a two-way hydraulic device, and the chain press reduces the oil circuit, which is easy to maintain. It is not only suitable for use in factories, but also can be used at construction sites and field operations anytime and anywhere. It is divided into electric and manual types, and users can choose according to their actual situation.
Equipment use
Core function: Mainly used to remove the connecting pins (track pins) between track plates, so as to repair, replace or maintain track plates, track pins and other components.
Applicable scenarios: Widely used in engineering machinery repair plants, mining equipment maintenance, equipment maintenance and other scenarios, especially suitable for handling the track removal needs of large crawler machinery.
Working principle
The working principle of the track pin removal machine is usually based on mechanical force or hydraulic force, and it applies directional thrust or pulling force to the track pin to make it disengage from the pin hole of the track plate. The specific process is as follows:
Positioning and fixing: Align the equipment with one end of the track pin, fix the track plate with a clamp or support structure to ensure that the track is stable during removal.
Apply pressure: Use power sources such as hydraulic cylinders, screw nut mechanisms or pneumatic devices to apply axial thrust to the track pin, and gradually push the pin out from the other end.
Auxiliary disassembly: Some equipment is equipped with a heating function (such as heating the pin hole), which reduces the tightness of the pin and the pin hole through the principle of thermal expansion and contraction, and improves the disassembly efficiency.
Manual:
Maximum manual force of manual reversing pump | 50Kg |  |
Working pressure | high pressure 0-63mpa low pressure 4Mpa | |
Working flow | high pressure flow 7 ml/time low pressure flow 50 ml/time | |
Oil tank capacity (liters) | 13 liters | |
Medium | 46# hydraulic oil |

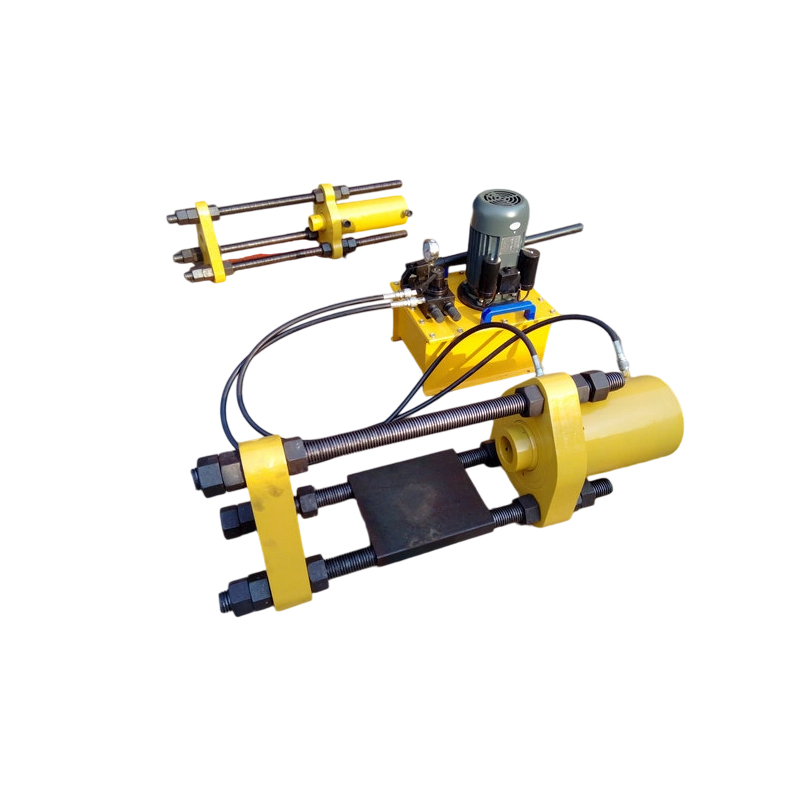

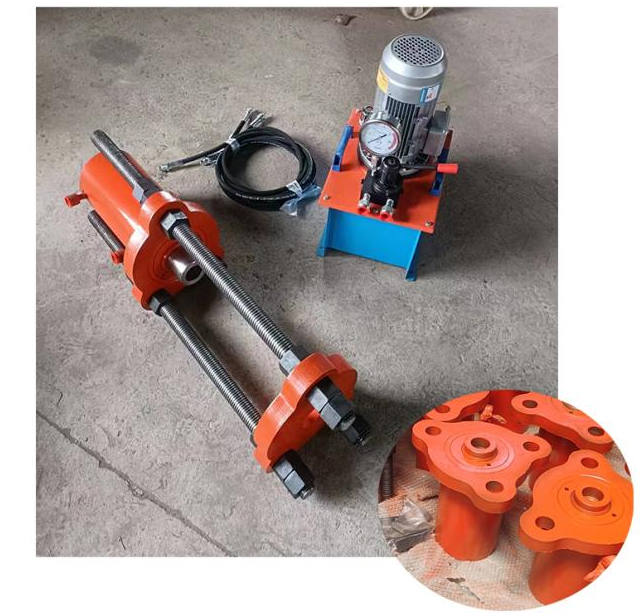

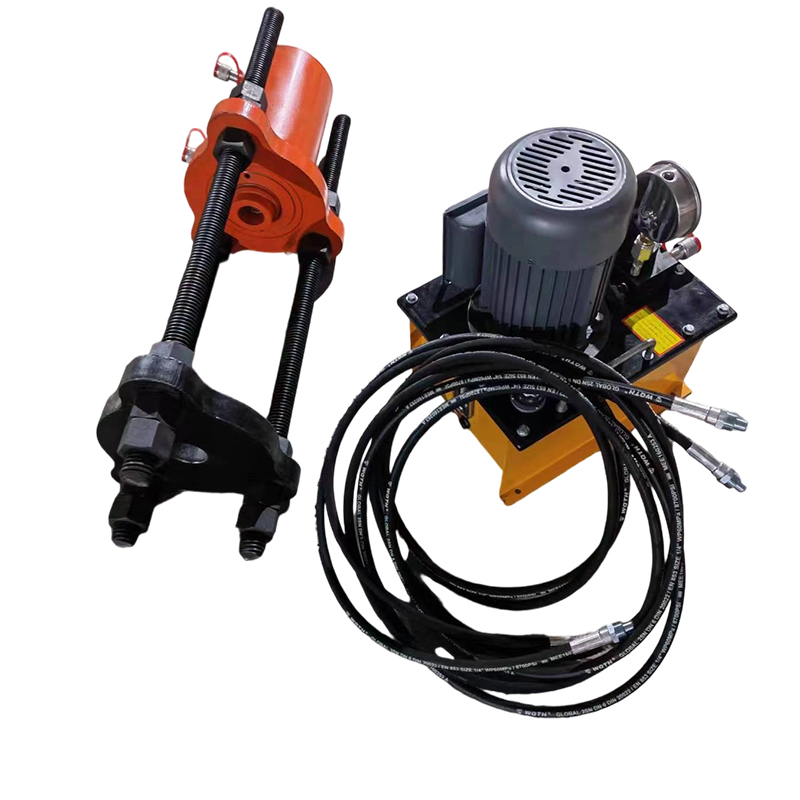

Electric
Motor power | 1.5KW 220V or 380V |  |
Working pressure | 0-63mpa | |
Working flow | 1.2L/min 1.2 liters/minute | |
Oil tank capacity (liters) | 16 liters | |
Medium | 46# hydraulic oil | |
Hydraulic cylinder thrust | 120T, | |
Stroke | 160T,200mm |
The track pin removal machine has the following product advantages:
Efficient and convenient: Compared with traditional methods of removing track pins such as gas cutting and hammering, the track pin removal machine uses the principle of converting hydraulic energy into mechanical energy to quickly and smoothly remove the pin shaft, greatly improving work efficiency and saving time and labor costs.
Protect the track: It avoids the damage to the track caused by the high temperature generated by gas cutting, as well as the deformation and damage of the track that may be caused by hammering, which helps to extend the service life of the track and reduce maintenance costs.
Strong applicability: It is suitable for in-factory operations and can be carried to different environments such as construction sites and the field. Whether it is a crawler excavator, loader or other crawler engineering machinery and equipment, the chain disassembly and assembly and sleeve disassembly can play a role.
Multi-functional use: In addition to the disassembly and assembly of track pins, it can also be used for lifting, bending, straightening, extrusion, shearing, riveting, jacking, stretching, punching and other operations after being equipped with common tools. It has high versatility and added value.
SERVICE
Pre-sale services
Provide the free consultation of the equipment
Provide the standard device and the flow chart
According to the clients' special reguirement, offering the reasonable plan and free design helping toselect the equipment.
Services during the sales
1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Povide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
