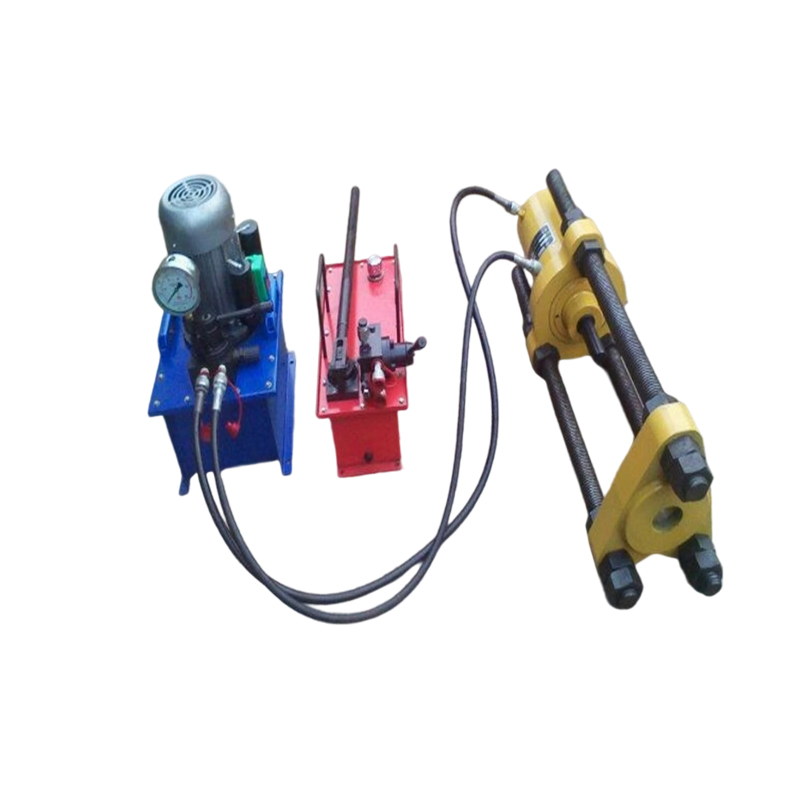

Crawler Pin Disassembly Machine

Damage-Free Operation – Ensures track integrity without cutting or hammering.

Dual Power Options – Works with both manual and electric hydraulic pumps.

Portable & Compact – Lightweight and suitable for field and workshop use.

Versatile Integration – Supports additional hydraulic components for varied tasks.

Multi-Purpose Use – Applicable to a wide range of industrial and engineering operations.


Contact Now E-Mail Telephone WhatsApp
Product Details

Product Description

The Crawler Pin Disassembly Machine is a hydraulic tool designed for disassembling and assembling track pins on crawler excavators. It works by converting hydraulic energy into mechanical force, enabling efficient and damage-free removal of the pin shaft. This replaces traditional methods such as gas cutting and manual hammering, effectively protecting the integrity of the excavator's track. It is an essential tool for excavator maintenance and assembly.

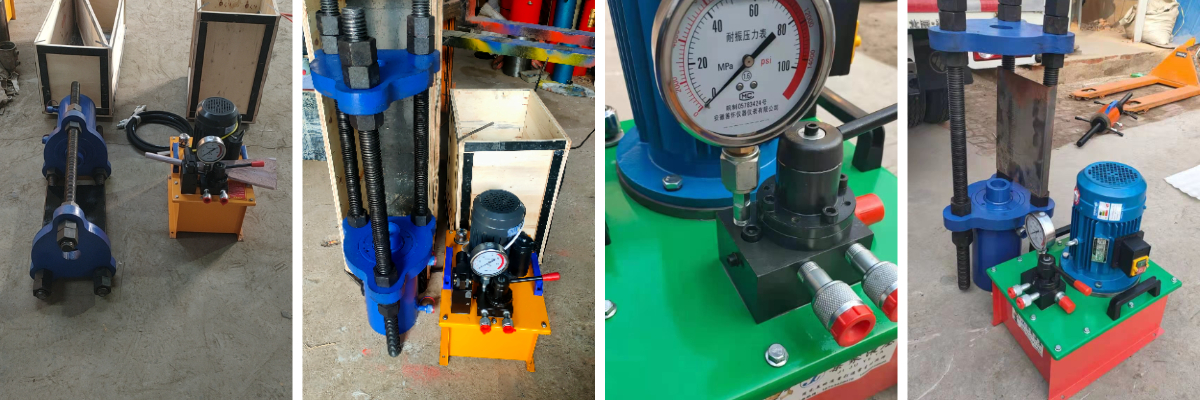

Crawler Pin Disassembly Machine


Our machine is compatible with the SYB-2S-B high-flow manual directional pump, ideal for field operations, and a 220V electric pump, both of which serve as the power source to drive the hydraulic cylinder forward and complete the pin removal task. The hydraulic system must be filled with 32# hydraulic oil before use to ensure optimal operation.

This machine is compact, lightweight, and features a simple and robust design. It allows for the addition of various hydraulic components to the existing hydraulic circuit, including solenoid directional valves, pressure relays, remote switches, and hydraulic locks. These elements can be configured as needed to meet different working pressure requirements within the rated range.

Applications

In addition to track pin disassembly, this machine can be used for pressure testing of pressure vessels. When equipped with suitable tools, it is capable of performing a variety of industrial tasks such as lifting, bending, straightening, extruding, shearing, riveting, welding, jacking, stretching, disassembly, punching, steel bar connection in construction, as well as other operations required in bridge and engineering structure projects.

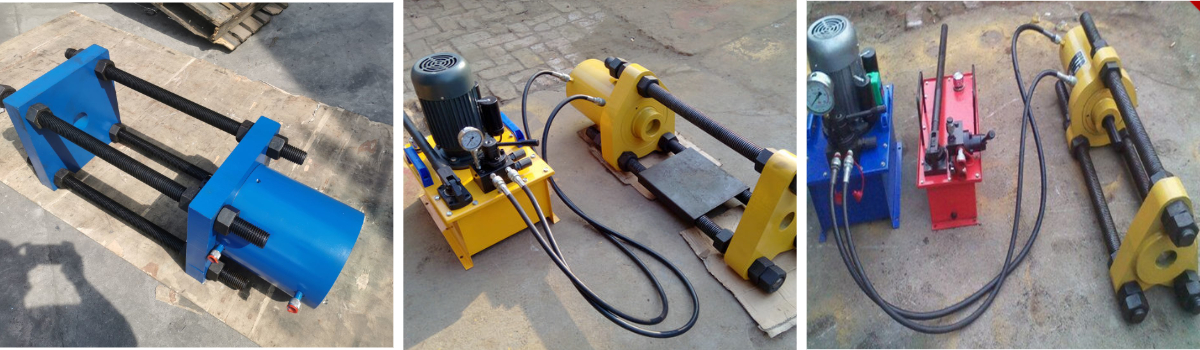

Crawler Pin Disassembly Machine


Technical Specifications


ItemSpecification

Manual Pump Model

SYB-2S-B High-Flow Manual Pump

Maximum Hand Force

50 kg

Working Pressure

High: 0–63 MPa / Low: 4 MPa

Flow Rate (Manual Pump)

High: 7 ml/stroke / Low: 50 ml/stroke

Electric Pump Model

DBS1.2 Electric Pump

Motor Power

1.5 kW

Voltage

220V

Working Pressure

0–63 MPa

Flow Rate (Electric Pump)

1.2 L/min

Hydraulic Cylinder Thrust

50 tons

Cylinder Stroke

200 mm

Hydraulic Oil Type

32# Hydraulic Oil
