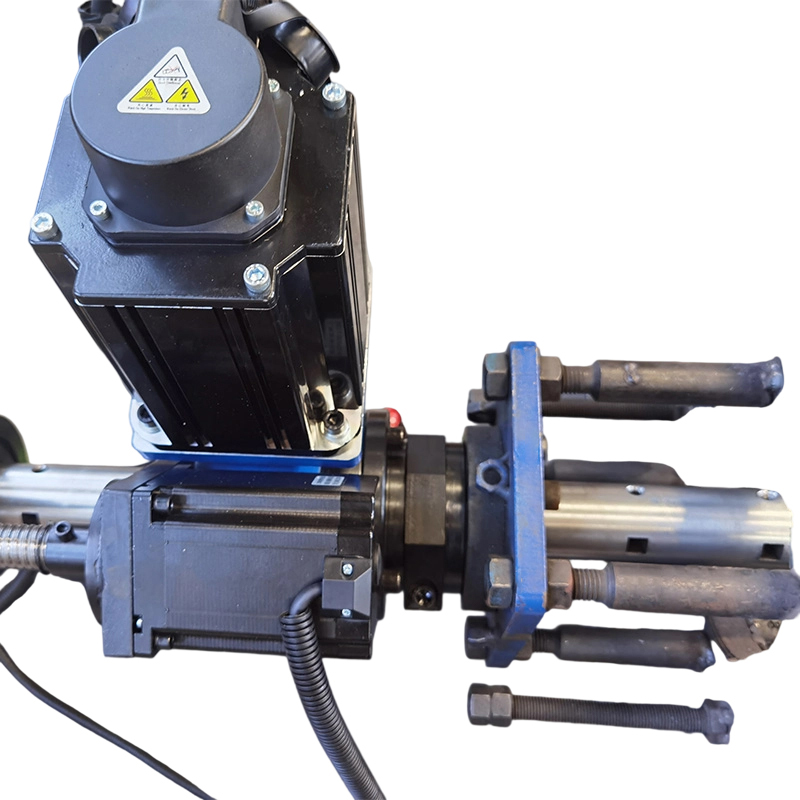

Portable Boring and Welding Machine
Compact & Lightweight Design: The machine is small in size and easy to transport, making it ideal for on-site and confined-space operations.
Multi-Function Integration: Combines boring and welding capabilities in one unit, supporting standard boring, fixed-length boring, spiral welding, and oscillating welding.
Digital Precision Control: Equipped with a user-friendly digital control system for accurate, stable, and easy operation.
Automated Operation Options: Supports fully automated modes including fixed-length boring and welding functions, allowing for unattended operation and increased efficiency.
Wide Range of Applications: Suitable for repairing pin holes, bearing holes, and other circular holes in large-scale equipment and construction machinery, widely used in industrial and mining maintenance.
Our CNC portable boring and welding all-in-one machine features a compact structure, lightweight design, and high-quality boring and welding performance. It requires minimal operating space and environmental conditions, making it easy to carry and ideal for on-site repairs. Widely used in the maintenance of circular holes such as pin holes and bearing holes in large machinery and construction equipment, it is an excellent helper for both industrial and construction site repair work.
Product Features
Equipped with a digital control system for precise control and easy operation.
Capable of performing standard boring, fixed-length boring, spiral welding, and oscillating welding.
Automatic stop function for fixed-length boring enables truly unattended operation.
Technical Specifications
| Item | Specification |
Boring Diameter Range | Φ50–300 mm |
Boring Stroke | 260 mm |
Boring Bar Size | 50 × 1600 mm |
Operating Voltage | AC 220V, 50Hz |
Max Power | 2.5 kW (stepless speed regulation) |
Spindle Speed | 0.1–200 r/min |
Welding Diameter Range | Φ55–250 mm |
Recommended Wire Dia. | Φ1.0 mm |
Total Machine Weight | 120 kg |

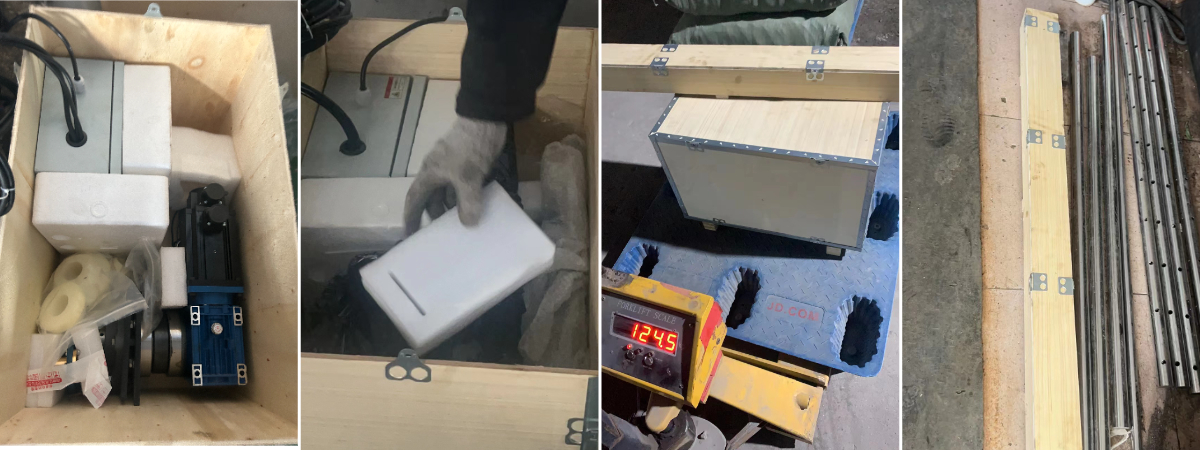

Packing & Shipping Process
Operating Environment
Ambient Temperature: -10℃ to +40℃
Storage Temperature: -25℃ to +55℃
Relative Humidity: ≤85% at 20℃; ≤50% at 40℃
(The machine should be stored in a dry, well-ventilated area, away from direct sunlight and rain. For long-term storage, apply machine oil to the lead screw and guide rail.)
Note:
Fixed-length boring, spiral welding, and oscillating welding are all automatic modes. If none of these three modes are selected, the machine defaults to manual mode.
