Hydraulic track press
Precise Hydraulic Control: Operated by a hydraulic system, it’s simple and easy to master—even new users can get proficient quickly.
Reinforced Full-Body Design: Key components of the machine body are fully thickened, delivering higher structural strength and significantly improved durability.
Versatile for Multiple Scenarios: The combination of easy operation and a robust frame makes it suitable for all types of track pin disassembly tasks, balancing efficiency and reliability.
Product Introduction

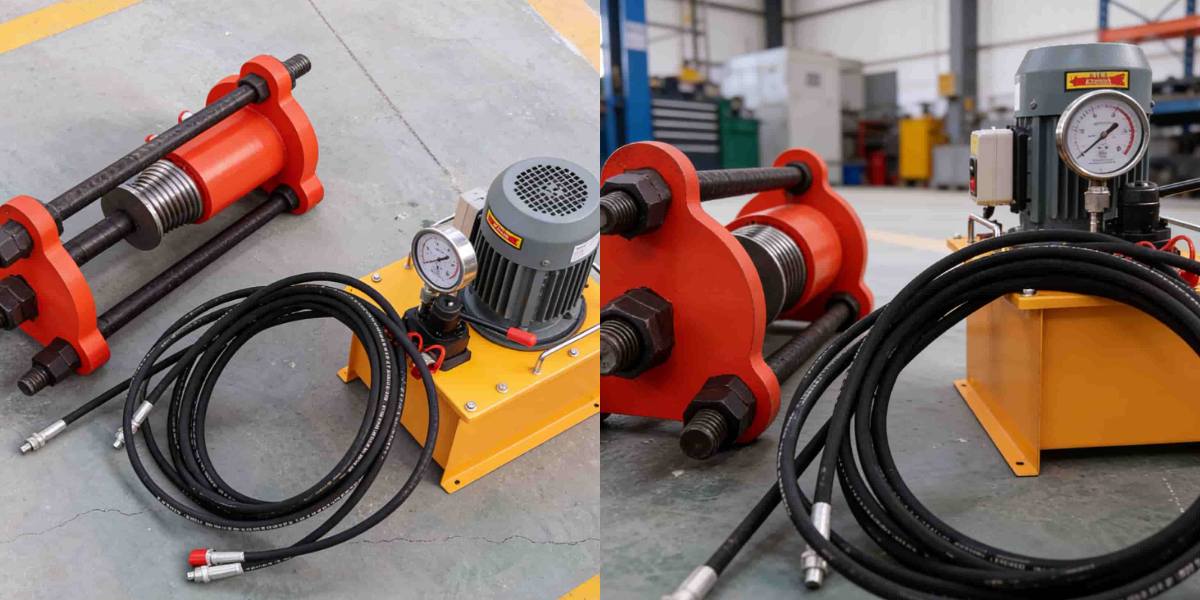

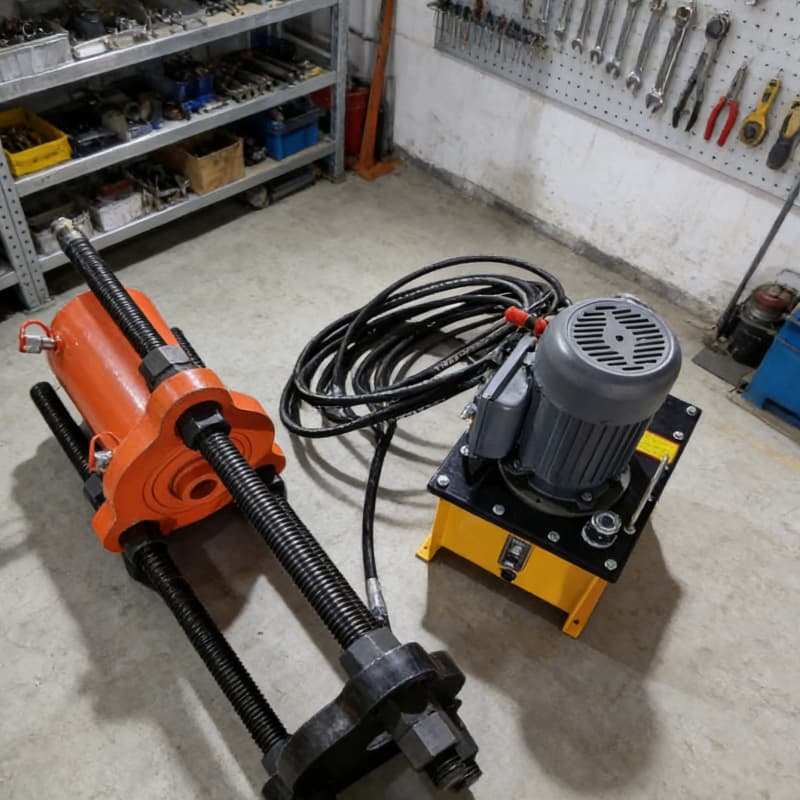

This Hydraulic track press is equipped with a pure copper motor, delivering strong and stable power output for highly efficient operation.The portable hydraulic track pin press features dual functionality, making it suitable for disassembly and maintenance of various track specifications with excellent practicality.Reliable in overall performance, this hydraulic pin press machine combines robust power with multi-scenario adaptability, serving as a handy tool for track equipment maintenance.
Product Parameters
Working pressure | high pressure 0-63Mpa low pressure 4Mpa |
Working flow | high pressure flow 7ml/time |
Low pressure flow | 50ml/time |
Oil tank capacity (L) | 13L |
Medium | 46# hydraulic oil |
Motor power | 1.5KW 220V or 380V |
Working pressure | 0-63Mpa |
Working flow | 1.2L/min |
Oil tank capacity (L) | 16L |
Medium | 46# hydraulic oil |
Hydraulic cylinder thrust | 100T, 120T, 160T |
Stroke | 200mm |
Product Details
Optional Manual Pump: Manual operation mode, ideal for power-free sites, enabling flexible and convenient emergency work.
Standard Electric Pump: Electric-driven for labor-saving efficiency. One-click start for fast operation, greatly boosting work productivity.
High-End Manual-Electric Integrated Pump: Freely switch between manual and electric modes, balancing convenience and emergency capability for diverse working conditions.

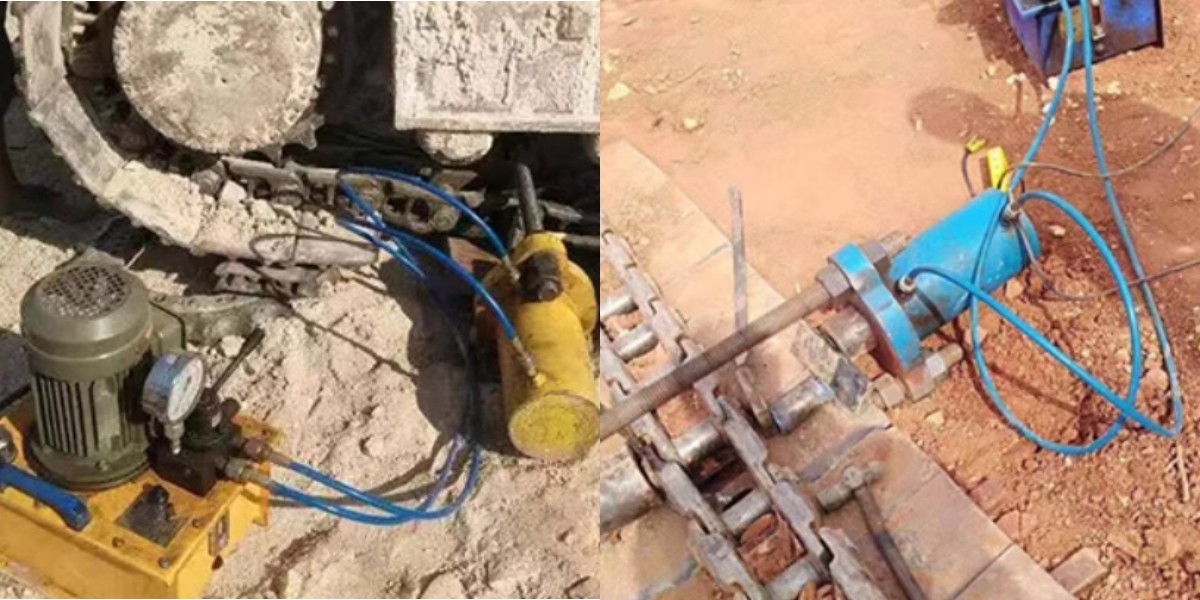

Product Usage Scenarios
Equipped with a manual-electric integrated pump, this track pin press features two control modes—manual and electric—that can be freely switched as needed.It is well-suited for both mountainous operations without power access and efficient urban construction tasks, easily handling diverse working conditions with a single machine.
Factory Profile
Our track pin press is equipped with thickened pin removal baffles. Made of high-quality materials, these baffles are wear-resistant, rugged and durable for long-term use.From component production to final assembly, we implement strict quality control throughout the entire process. This ensures the machine’s stable and reliable overall performance, with its robust build easily standing up to rigorous working conditions.
Customer Feedback
Many customers have commented that this track pin press is dual-purpose: it can not only remove track pins but also assist in equipment maintenance, boasting highly practical functions.It is also extremely easy to operate—users can master it quickly with no extra effort, significantly boosting daily work efficiency. It’s a hassle-free and reliable tool for all your needs.
FAQ
Q: How is the power performance of this track pin press? Is the bushing pressing work strenuous?
A: It delivers strong power, making bushing pressing work easy and efficient with no extra effort required.
Q: Does this machine come with reliable after-sales support? Is the warranty period long?
A: Backed by an extended warranty, it offers comprehensive after-sales protection for your peace of mind.
Q: Can this equipment help save costs during operation?
A: Easy to operate and highly efficient, it significantly cuts down labor costs and delivers outstanding cost-effectiveness.
